Kit de démarrage, starter kit

KIT DE DEMARRAGE

TX6D Dual Cortex A9 - 800 Ghz

TX6DL

Processor Freescale i.MX 6Dual-Lite, 800 MHz

RAM 1GB DDR3 SDRAM

ROM 128MB NAND Flash

RTC DS1339 Real Time Clock

Power supply Single 3.1V to 5.5V

Size 31mm SO-DIMM

Temp.-Grade Industrial -40°C..85°C

10/100Mbps Ethernet IEEE1588 support

Two High Speed USB 2.0 ports

Full HD LCD controller

OpenGL ES 2.0 hardware accelerator

Multi-format HD 1080p video decoder and 720p video encoder hardware engine

Two Camera Interfaces

NEON MPE coprocessor

— SIMD Media Processing Architecture

— NEON register file with 32x64-bit general-purpose registers

— NEON Integer execute pipeline (ALU, Shift, MAC)

— NEON dual, single-precision floating point execute pipeline (FADD, FMUL)

— NEON load/store and permute pipeline

Unified 512kByte L2 cache Vector Floating Point Unit

Several interfaces: 3x UART, 2x SDIO, 2x SSI/AC97/I2S, I2C, CSPI, Keypad, Ext. Memory I/F

Two CAN interfaces

3.3V I/O

OS Support : Windows Embedded Compact 7

Linux, Android by kernel concepts, QNX 6.5

TX6Q

Processor Freescale i.MX 6Quad,1GHz

RAM 1GB DDR3 SDRAM 64-bit

ROM 128MB NAND Flash

Power supply Single 3.1V to 5.5V

Size 31mm SO-DIMM

Temp.-Range - 20°C..70°C

10/100Mbps Ethernet

Two High Speed USB 2.0 ports

Full HD LCD controller, 24bpp

OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators

Multi-format HD 1080p60 video decoder and

1080p30 encoder hardware engine

Two Camera Interfaces

NEON MPE coprocessor

SIMD Media Processing Architecture

dual, single-precision floating point execute pipeline Unified 1MB L2 cache

Several interfaces:

3x UART, 2x SDIO, 2x SSI/AC97/I2S,

I2C, CSPI, Keypad, Ext. Memory I/F

3.3V I/O

IEEE1588 support

2x Controller Area Network (FlexCAN)

PCIe 2.0 (1-lane)

LVDS S Option: Dual LVDS display port

SATA

OS Support ; QNX6.5, Linux, Android, Windows Embedded compact 7

TX6Q Quad Cortex A9 I.MX6Q - 1 Ghz

TX53

Processor Freescale i.MX537, 800 MHz

Freescale i.MX535, 1 GHz

RAM 512MB/1GB DDR3/DDR2 SDRAM

(up to 2GB on request)

ROM 128MB NAND Flash

RTC DS1339 Real Time Clock

Power supply Single 3.1V to 5.5V

Size 31mm SO-DIMM

Temp.-Range 0°C..70°C (i.MX535 case temp)

-40°..85°C (i.MX537 case temp)

10/100Mbps Ethernet

IEEE1588 support (i.MX537 only)

Two High Speed USB 2.0 ports

LCD controller up to 1600 x 1200, 24bpp

Dual LVDS display port (option on request)

OpenGL ES 2.0 and OpenVG 1.1

hardware accelerators

Multi-format HD 1080p video decoder and

720p video encoder hardware engine

Two Camera Interfaces

NEON SIMD media accelerator

Unified 256KB L2 cache

Vector Floating Point Unit

Several interfaces:

3x UART, 2x SDIO, 2x SSI/AC97/I2S,

I2C, CSPI, Keypad, Ext. Memory I/F

Two CAN interfaces (i.MX537 only)

3.3V I/O

OS Support ; QNX6.5, Linux 2.6, RedBoot Bootloader

TX53 Cortex A8 I.MX53 - 1 Ghz

TX25 ARM9 i.MX25

TX25

Processor Freescale i.MX25, 400 MHz

RAM 64 MB SDRAM

ROM 128MB NAND Flash

Power supply Single 3.1V to 5.5V

Size 26mm SO-DIMM

Temp.-Range -40°C..85°C

Key Features

10/100Mbps Ethernet

High Speed USB 2.0 OTG

High Speed USB 2.0 Host

LCD controller

Still-picture camera interface

Several interfaces: UART, SD-CARD, I2C, PWM, 1-wire Keypad, Digital Audio (AC97/I2S), Configurable serial peripheral interface, 4/5 wire Touchscreen, CAN

OS Support : QNX, Windows Embedded CE,Linux 2.6, RedBoot Bootloader.

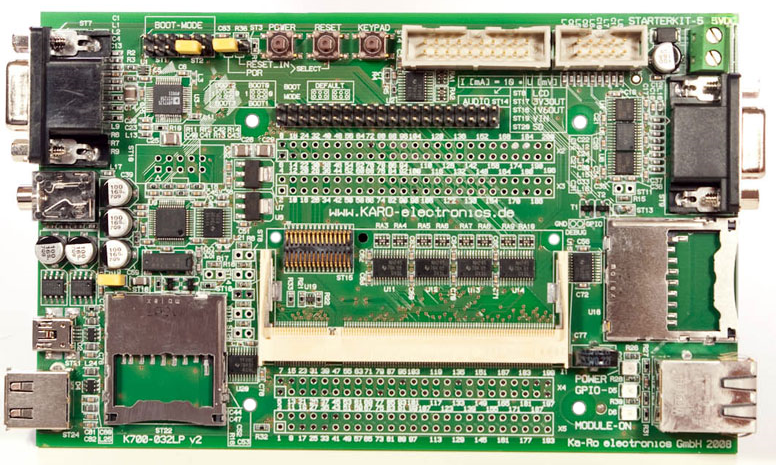

TX Starter KIT V

TX51

Processor Freescale i.MX515 ARM Cortex-A8

up to 800 MHz (commercial)up to 600 MHz (industrial) RAM 128/256MB mobile DDR-SDRAM

ROM 128MB NAND Flash

RTC DS1339 Real Time Clock

Power supply Single 3.1V to 5.5V

Size 26mm SO-DIMM

Temp.-Range 0°C..70°C (-40°C..85°C)

Key Features

10/100Mbps Ethernet

High Speed USB 2.0 OTG

High Speed USB 2.0 Host

LCD controller up to 1280 x 768, 24bpp

OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators multi-format HD 720p video decoder and D1 video encoder hardware engine

Two Camera Interfaces

NEON SIMD media accelerator

Unified 256KB L2 cache

Vector Floating Point Unit

Several interfaces: 3x UART, 2x SDIO, 2x SSI/AC97/I2S, I2C, CSPI, Keypad, Ext. Memory I/F

OS Support ; QNX6.4 and 6.5, Windows Embedded CE, Linux 2.6, RedBoot Bootloader

TX28

Processor Freescale i.MX287, 454 MHz

RAM 128MB DDR2-400 SDRAM

ROM 128MB NAND Flash

RTC DS1339 Real Time Clock

Power supply Single 3.1V to 5.5V

Size 26mm SO-DIMM

Temp.-Range -40°C..85°C

Key Features

Two 10/100Mbps Ethernet ports with IEEE1588 support

Two High-Speed USB 2.0 ports

True colour LCD controller

Two CAN interfaces

4/5 wire Touchscreen interface

Several peripheral interfaces:

UART, SD-CARD, I2C, PWM, Serial Audio, SPI

Power management optimized for long battery life

3.3V I/O

OS Support : QNX, Linux, Windows Embedded CE

TX51 Cortex A8 i.MX51

TX27 ARM9 i.MX27

TX28 ARM9 i.MX28

SITRE propose des KITs de démarrage rapide pour réaliser des prototypages rapides.

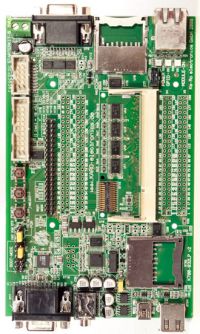

Ces kits sont constitués d’une carte mère de KA-RO electronics unique appelée TX Starter KIT et sur laquelle différents modules systèmes appelés TX à base de processeurs i.MX25, I.MX27,I.MX28, I.MX51 et I.MX53 de Freescale peuvent être connectés.

Les kits sont disponibles pour les environnements QNX ou Linux .

La carte mère TX Starter KIT est fournie avec ses schémas et les modules TX sont dèjà au format industrialisé pour une utilisation en production.
