TX28 ARM9 i.MX28
TX27 ARM9 i.MX27
TX Starter KIT V
TX27
Processor Freescale i.MX27, 400 MHz
RAM 64/128MB mobile DDR-SDRAM
ROM 128MB NAND Flash
RTC DS1339 Real Time Clock
Power supply Single 3.1V to 5.5V
Size 26mm SO-DIMM
Temp.-Range -20°C..85°C
Key Features
10/100Mbps Ethernet
High Speed USB 2.0 OTG
High Speed USB 2.0 Host
LCD controller up to 800 x 600, 18bpp
MPEG-4 H.263/H.264 Hardware Codec
Camera Interface
Several interfaces:6x UART, 2x SDIO, 2x SSI/AC97/I2S,I2C,CSPI, Keypad, Compact Flash
OS Support : Windows Embedded CE,Linux 2.6, RedBoot Bootloader
TX51 Cortex A8 i.MX51
KIT DE DEMARRAGE
SITRE propose des KITs de démarrage rapide pour réaliser des prototypages rapides.
Ces kits sont constitués d’une carte mère de KA-RO electronics unique appelée TX Starter KIT et sur laquelle différents modules systèmes appelés TX à base de processeurs i.MX25, I.MX27,I.MX28, I.MX51 et I.MX53 de Freescale peuvent être connectés.
Les kits sont disponibles pour les environnements QNX ou Linux .
La carte mère TX Starter KIT est fournie avec ses schémas et les modules TX sont dèjà au format industrialisé pour une utilisation en production.

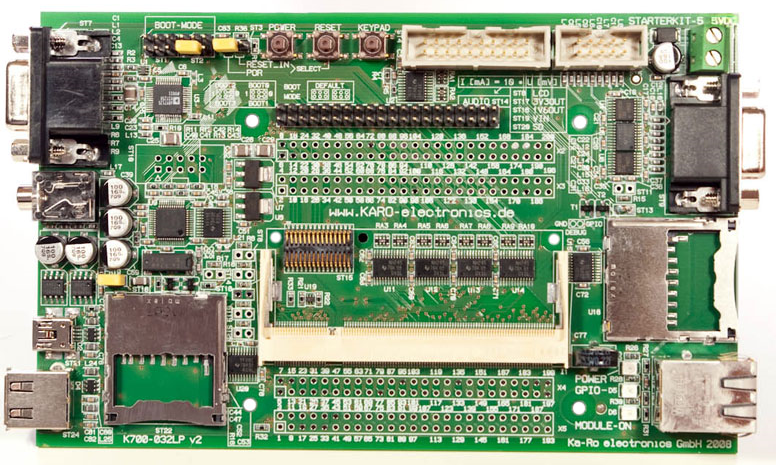

Ka-Ro TX Starter-Kit V
- Socket SODIMM 200 TX
- 2 sockets SD-card
- Connecteur USB 2.0 OTG
- Connecteur USB 2.0 Hôte
- Connecteur VGA D-SUB 15
- Prise Cable plat LCD 40 pins
- Connecteur audio 3.5mm
- interface JTAG
- Codec SGTL5000 audio
- Controlleur écran tactil TSC2007
- Prise 10 pins cable plat RS232
- Prise RS232 SUB-D
- Ethernet 10/100 Mbit/s
Voltage de fonctionnement : 5VDC alim. par USB-OTG ou power jack.

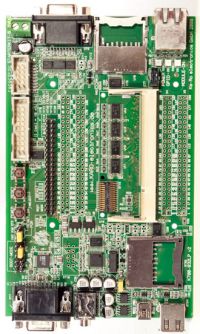

100mm x 160mm Starter-Kit V pour Modules TX avec Processors i.MX de Freescale
TX51
Processor Freescale i.MX515 ARM Cortex-A8
up to 800 MHz (commercial)up to 600 MHz (industrial) RAM 128/256MB mobile DDR-SDRAM
ROM 128MB NAND Flash
RTC DS1339 Real Time Clock
Power supply Single 3.1V to 5.5V
Size 26mm SO-DIMM
Temp.-Range 0°C..70°C (-40°C..85°C)
Key Features
10/100Mbps Ethernet
High Speed USB 2.0 OTG
High Speed USB 2.0 Host
LCD controller up to 1280 x 768, 24bpp
OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators multi-format HD 720p video decoder and D1 video encoder hardware engine
Two Camera Interfaces
NEON SIMD media accelerator
Unified 256KB L2 cache
Vector Floating Point Unit
Several interfaces: 3x UART, 2x SDIO, 2x SSI/AC97/I2S, I2C, CSPI, Keypad, Ext. Memory I/F
OS Support ; QNX6.4 and 6.5, Windows Embedded CE, Linux 2.6, RedBoot Bootloader
TX28
Processor Freescale i.MX287, 454 MHz
RAM 128MB DDR2-400 SDRAM
ROM 128MB NAND Flash
RTC DS1339 Real Time Clock
Power supply Single 3.1V to 5.5V
Size 26mm SO-DIMM
Temp.-Range -40°C..85°C
Key Features
Two 10/100Mbps Ethernet ports with IEEE1588 support
Two High-Speed USB 2.0 ports
True colour LCD controller
Two CAN interfaces
4/5 wire Touchscreen interface
Several peripheral interfaces:
UART, SD-CARD, I2C, PWM, Serial Audio, SPI
Power management optimized for long battery life
3.3V I/O
OS Support : QNX, Linux, Windows Embedded CE
TX25 ARM9 i.MX25
TX25
Processor Freescale i.MX25, 400 MHz
RAM 64 MB SDRAM
ROM 128MB NAND Flash
Power supply Single 3.1V to 5.5V
Size 26mm SO-DIMM
Temp.-Range -40°C..85°C
Key Features
10/100Mbps Ethernet
High Speed USB 2.0 OTG
High Speed USB 2.0 Host
LCD controller
Still-picture camera interface
Several interfaces: UART, SD-CARD, I2C, PWM, 1-wire Keypad, Digital Audio (AC97/I2S), Configurable serial peripheral interface, 4/5 wire Touchscreen, CAN
OS Support : QNX, Windows Embedded CE,Linux 2.6, RedBoot Bootloader.
TX53 Cortex A8 I.MX53 - 1 Ghz
TX53
Processor Freescale i.MX537, 800 MHz
Freescale i.MX535, 1 GHz
RAM 512MB/1GB DDR3/DDR2 SDRAM
(up to 2GB on request)
ROM 128MB NAND Flash
RTC DS1339 Real Time Clock
Power supply Single 3.1V to 5.5V
Size 31mm SO-DIMM
Temp.-Range 0°C..70°C (i.MX535 case temp)
-40°..85°C (i.MX537 case temp)
10/100Mbps Ethernet
IEEE1588 support (i.MX537 only)
Two High Speed USB 2.0 ports
LCD controller up to 1600 x 1200, 24bpp
Dual LVDS display port (option on request)
OpenGL ES 2.0 and OpenVG 1.1
hardware accelerators
Multi-format HD 1080p video decoder and
720p video encoder hardware engine
Two Camera Interfaces
NEON SIMD media accelerator
Unified 256KB L2 cache
Vector Floating Point Unit
Several interfaces:
3x UART, 2x SDIO, 2x SSI/AC97/I2S,
I2C, CSPI, Keypad, Ext. Memory I/F
Two CAN interfaces (i.MX537 only)
3.3V I/O
OS Support ; QNX6.5, Linux 2.6, RedBoot Bootloader
